• Dual setpoints with optional remote selection
  • Plug-in output modules allow installing just the functions needed
  • Expanded user-selectable operator modes
  • User-selectable plug-and-play output cards
  • Process and loop alarms
  • Adjustable hysteresis
  • Optional 10V SSR driver
  • Optional analogue Remote Setpoint Input
  • Improved Windows PC configuration software
  • Improved easy to use HMI
  • Jumperless input configuration
  • Auto-hardware recognition
  • Faster communication speeds
  • More security options
  • Backward compatible panel cut out, housing and terminal wiring capability

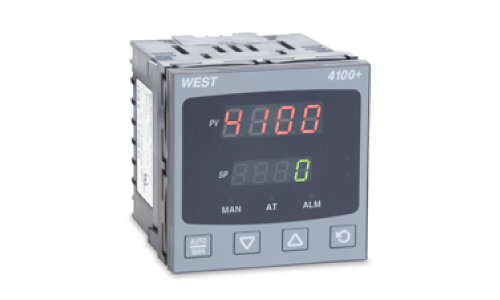

Product Category: Single Loop Controller
Dimensions and size: 96mm x 96mm x 100mm (HxWxD), 1/4 DIN
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Other Inputs: Digital, Remote setpoint
Output Type: Relay, SSd, DC linear V or mA, Triac, 24V transmitter power supply
Max. Number of Outputs: 3
Control Type: PID, ON/OFF, Manual, Alarm, Ramp to Setpoint
Power Supply: 100–240V AC 50–60Hz, 20-48V AC 50/60 Hz, 22-65V DC
Communications: RS-485 serial (West ASCII or MODBUS®)
Panel Sealing: IEC IP66, NEMA4X
Certifications: CE, UL, ULC, CSA
Software Tools: Plus Series Configurator
